DataHub is a part of software product information architecture. It can be described as a data warehouse that holds a pile of data from various sources. Data integration and transformation tools work as middleware components in the integrated systems. SAP Hybris Data Hub is a specialized tool to fit into the SAP landscape while Hybris Data Hub is for SAP Hybris Commerce.
Table of Contents
SAP Hybris data hub’s main use is to interface Hybris with ERP components like SAP ERP. It supports master-slave data synchronization which would mean that it transfers product data from ERP to Hybris and order data from Hybris to ERP.
Data Replication Processes:
Inbound process: This means that the data generated on the ERP system is transferred to SAP Hybris. Thus, inbound processes normally include extracting data from the enterprise resource planning system and loading data into the data hub while transforming it into an appropriate format.
Outbound process: Data is assimilated from SAP Hybris to the ERP system. Outbound processes comprise data extraction from the data hub, possibly transforming it, and then loading it into the ERP system.
What is the Architecture of SAP Integrations?
The integration structures of SAP are composed of several elements of SAP integration, some communication standards, and data exchange systems. Regarding the specific architecture, it can be stated that it depends on the extent of integration and the systems to be interconnected. Some of the most used forms of architectural styles are the hub and spokes, point-to-point, and service-oriented architecture (SOA).

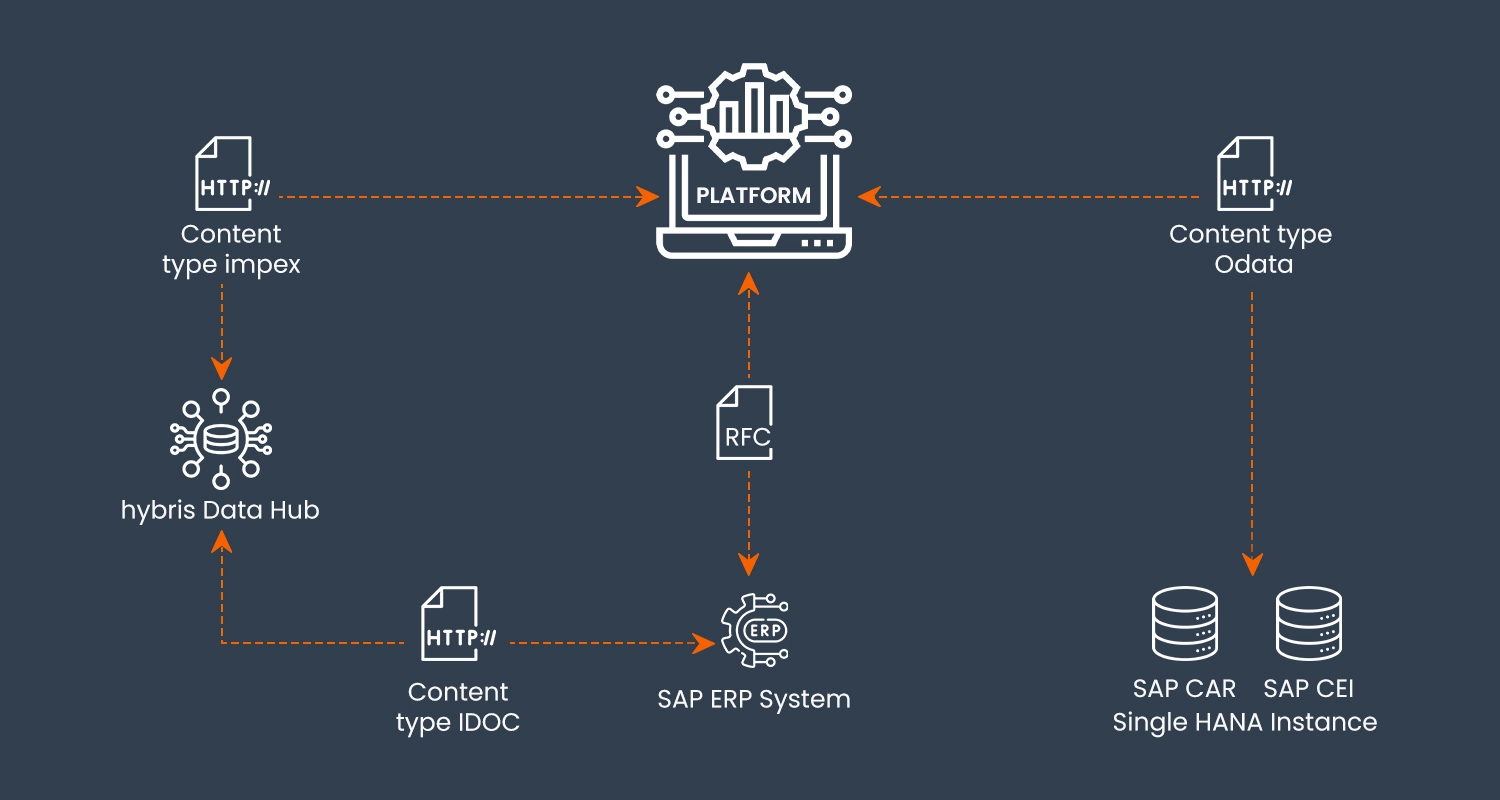

Data Transfer Process
The process of transferring data between SAP Commerce Data Hub and Hybris Commerce involves the following steps:
ImpEx Generation: The data hub generates an ImpEx file without any data, but it does contain references to the URLs for the data. ImpEx is specifically a data import/export format that Hybris employs.
URL Retrieval: Hybris sends a signal to the data hub to inform it that the URLs have been received.
Data Retrieval: Hybris then calls for the required data for the provided URLS from the data hub.
ImpEx Creation: Using the obtained data Hybris builds the full ImpEx file.
Data Import: Hybris then imports the ImpEx file onto its system.

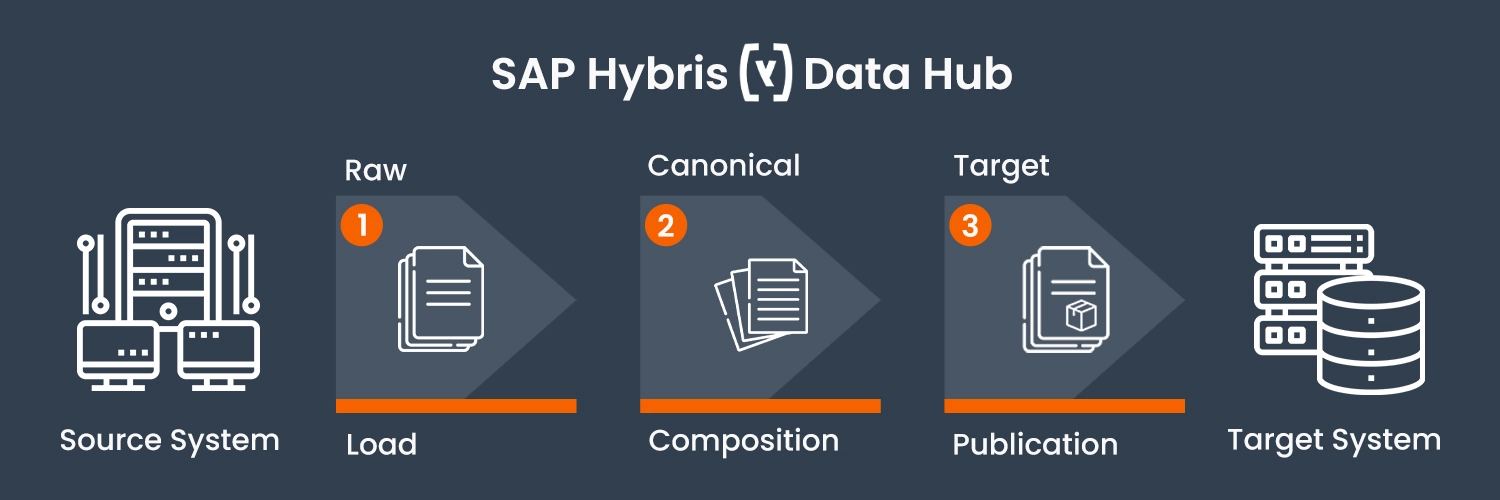

Stages of Hybris Data Hub Integration
SAP Hybris Data Hub has several extensions running on a Tomcat server. The data integration process within Hybris Data Hub consists of three main stages:
Load: Data is initially introduced into the Hybris Data Hub with a raw format known as source-supplied data. The load stage prescribes loading data from different sources including ERP systems, flat files, or databases to the data hub.
Composition: Raw data is rearranged into a canonical format to group them or filter out certain units or features of vectors or matrices. In the composition stage, the first data cleaning, validation, and enrichment ensure the data to be processed is complete and of high quality.
Publication: Routine data are consolidated then translated into the target format and forwarded to the target system via the outbound extensions. The publication stage converts data into the desired form of the target system and distributes it using relevant channels.
Points to Remember:
- Hybris mostly deals with CSV or ImpEx file formats.
- IDs are specifically in the form of IDoc file format while BDocs are in the form of BDoc file format and these are the two file formats that SAP ERP primarily deals with.
- Delta data converter also changes the data format between CSV/ImpEx and IDoc/BDoc.
- The data hub should be capable of recognising XML as a form of input and also converting it to ImpEx.
- SAP IDoc Outbound Adapter helps in reading the target system format, generates IDoc and transfers the same to the SAP system.
What are the Advantages and Disadvantages of Data Hub?
Advantages:
Data Staging: Centralises data to enable its use in management since it is obtained from various sources. Data staging helps clean, transform, and enrich the data before it is loaded into specific systems.
Enhanced Data Integration: Aggregates several pieces of information into an integrated type. Data hubs can accommodate involved data mediation situations such as dealing with data from different formats and/or structures.
Operational Efficiency: Even in the dataset import process and the general management of the data, there is a shortening of the overall steps that are required. Data hubs help in the execution of data exchange and analytical activities, which saves a lot of time and effort and eliminates inconsistencies.
Improved Product Information Management: They help to produce accurate and up-to-date product details for the clients. Master data management of product data is possible using data hubs that support data transfer from one system to another without remodeling the data into another structure.
Scalability: Accommodates large amounts of data to enhance business activity. Data hubs can grow as the amount and complexity of data increases.
Flexibility: Does not rely solely on one business need, specific data type, or a certain source of data input.
Disadvantages:
Complexity in Support: There is a need to be endowed with special knowledge and equipment. The implementations of the data hubs can be rather elaborate, and it would need technical knowledge about data integration and middleware.
Debugging Challenges: Locating and addressing data problems is not an easy task. The problems that relate to data quality and integration errors are usually hard to identify and resolve.
Performance Issues: This may affect performance with big data sets in terms of size and complexity. The biggest focus is made on the fact that data hub performance is important in real-time or near-real-time integration cases.
Overkill for Simple Integrations: This may not be necessary, especially when integrating software basic applications such as emails, and document editing. In less complex cases of just transferring data, there could be other integration methods that could be used.
Overall, by knowing the ideas and parts of data hub integration with Hybris, organizations can benefit and improve their data handling mechanisms, business processes, and efficiency using this technology.
